CASE STUDY
Customer Case Study

Avoid Electrical
Safety Pitfalls!

Full Revelation of Isolation Transformer Functions, Advantages & Disadvantages and 220V Wiring Method

In industrial control, medical equipment and other scenarios, electrical safety and signal stability are crucial. Many users are faced with problems such as electric leakage, interference and chaotic wiring. Especially in 220V scenarios, they have vague cognition of the functions, advantages and disadvantages of isolation transformers, and do not know how to wire a 220V isolation transformer, resulting in equipment faults and potential safety hazards.

Application Scenarios

Complex Wiring Environments

Without understanding the functions of isolation transformers, it is impossible to match application scenarios; without mastering their advantages and disadvantages, it is difficult to balance practicality and cost; without knowing the wiring method of 220V isolation transformers, installation errors are easy to occur. In fact, the core value of isolation transformers is to realize electrical isolation and solve pain points of safety and interference. Clarifying its pros and cons and mastering the wiring method are the key.

The core function of an isolation transformer is to isolate the input and output windings, prevent electric leakage and electric shock, suppress clutter interference, purify power supply, and also realize voltage matching. It is widely applied in electric power, medical treatment, industrial control and other fields.

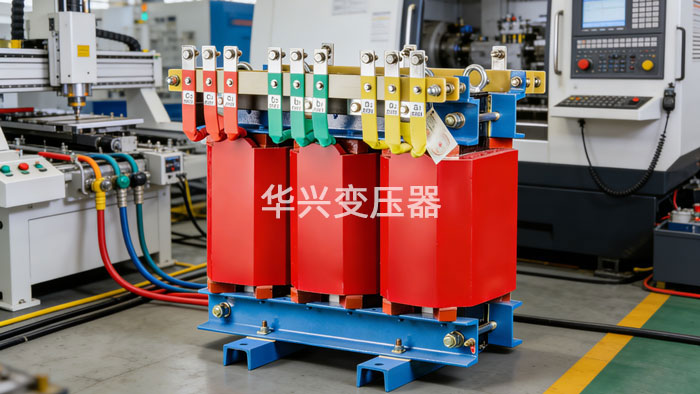

Isolation Transformer Core Structure

220V Wiring Method

The wiring of 220V isolation transformer follows the principle of "electrical isolation and standard grounding":

01.

Identify windings: Connect primary (INPUT/PRI) to 220V mains L and N, and connect secondary (OUTPUT/SEC) to the load.

02.

Grounding rules: Connect the shell with green-yellow protective earth wire, and the secondary side is recommended to be floating (except for special scenarios).

03.

Testing: Test with a multimeter after wiring, confirm the no-load voltage is normal before connecting the load. The operation shall be completed by professional electricians to avoid reverse connection.

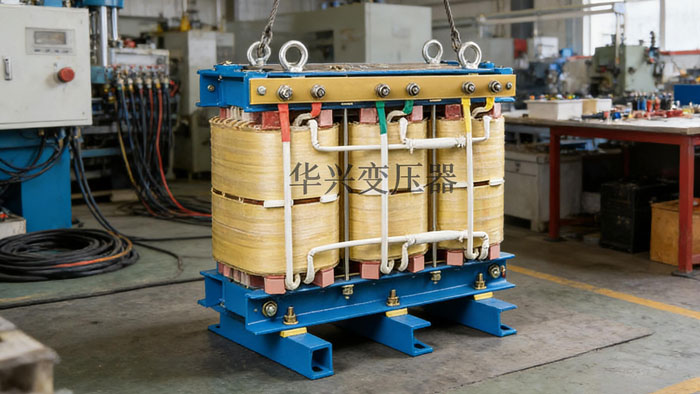

Wiring Diagram / Testing

After an automated production line installed isolation transformers, the equipment failure rate dropped to 2%, and the interference problem was solved. A medical manufacturer passed safety certification and eliminated electric leakage hidden dangers after type selection. It proves that correct cognition and standardized use can solve electrical pain points.

High-quality isolation transformers reflect brand strength. As a professional manufacturer deeply rooted in the industry for many years, Huaxing Transformer selects high-quality materials and optimizes the structure. While retaining the core advantages of isolation transformers, it minimizes energy loss and reduces volume, balancing safety and economy. It also provides professional wiring guidance to escort electrical safety for all industries.

Electrical safety is no trivial matter. Understanding the functions, advantages and disadvantages of Huaxing isolation transformers and mastering the 220V wiring method can avoid application misunderstandings. We will share the selection skills of Huaxing isolation transformers later to help accurately match scenario demands and ensure safe and efficient operation of equipment.
Core Advantages
Strong
Protection
  • ▪ Strong safety protection, able to prevent electric leakage and protect personal and equipment safety.
  • ▪ Reduce interference and improve equipment stability.
  • ▪ Provide floating voltage source to adapt to special circuits.
!
Application Constraints
Disadvantages
  • ✕ It has iron loss and copper loss.
  • ✕ Large volume occupies space.
  • ✕ High cost, not friendly to users with limited budget.
Case Outcome
2%
Equipment failure rate dropped to
Interference Solved Safety Certified
Huaxing Promise
Minimizes energy loss and reduces volume, balancing safety and economy. Professional wiring guidance to escort electrical safety.
